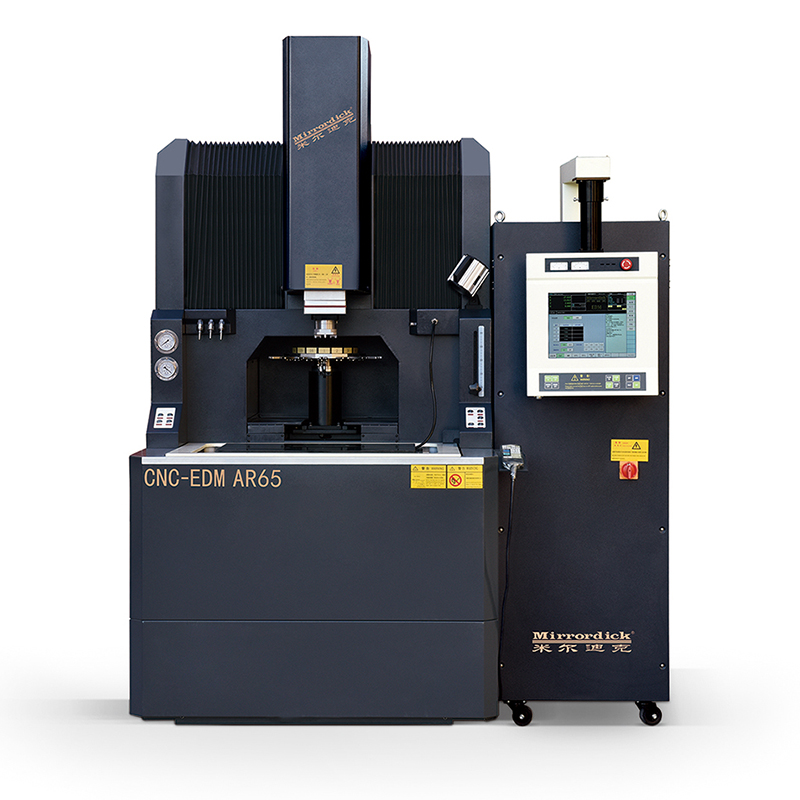

AR65 High Precision Mirror EDM Machine
A EDM machine with mirror finishing, hard alloy, g
High precision mirror machine
• Automatic lifting of oil tank
• Windows control system(Chinese/English)
• Network transmission port
• PIKA utra-precision mirror discharge circuit
• 60 workpiece coordinate systems

Special option
• C axis
• 16-position ATC electrode library
• Spark oil constant temperature device
• Stabilizer
• Quick Chuck

inquiry now

PARAMETER



Item AR50
Table size (length×width) 800×550（mm）
X. Y, Z axis travel 600×500×350(mm)
Internal dimension of machining
fluld tank(L×W×H)		 1000×700×350(mm)
Maximum electrode weigh 50kg
Minmum and maximum distance from work
surface to eletrode plate		 200-550mm
Positioning accuracy (IS standard) 5um/任意(Abitrarily)300mm
Repeat accuracy (JIS standard) 2µm
Machine weight 6000kg
Dimensions
(length×width×height)		 2300×2300×2500（mm）
Processing fluid filtration method Exchangeable paper filter
Numerical control pulse
power supply device		 40A
Maximum machining current 40A
Total input power 9 KVA
Input power 220V/380V(国内)
Best surface roughness Ra 0.1µm
Minimum electrode loss 0.1%
Highest productivity Copper hit steel 500mm³/min，Graphite hit steel1030mm³/min
Standard process Copper steel graphte/steel fine graphlte/steel,copper-tungsten
aloyhard aloy ,copper-tungsten aloy/steel,red copper/red copper
Interpolation type Linear，circular，spira
Compensation for each axis Each axis respectively step error compensation.clearance compensation
Maximum number of
controlled axes		 Three axises linkage(standard),four simultaneous axises(optional)
Resolution of
each axis		 0.4µm
Minimum drive unit 1µm
Input type Touch screen,U disk,Net work transmission
Display type 15″LCD screen (TFI-LCD)
Manual control box Standard point move (multistage switching)
Position command type Absolute，incremental dual purpose
Drive mode Fully digital AC servo
Standard accessories
(see detailed packing list)

Machine sizing block,adjustable fixture,machine tool
light ,filter,liquid level controller,insurance chip,
tool box,instruction marnual,grease gun,etc.
