AM140 Precision Double Heads Cow Head EDM Machine Series
AM140

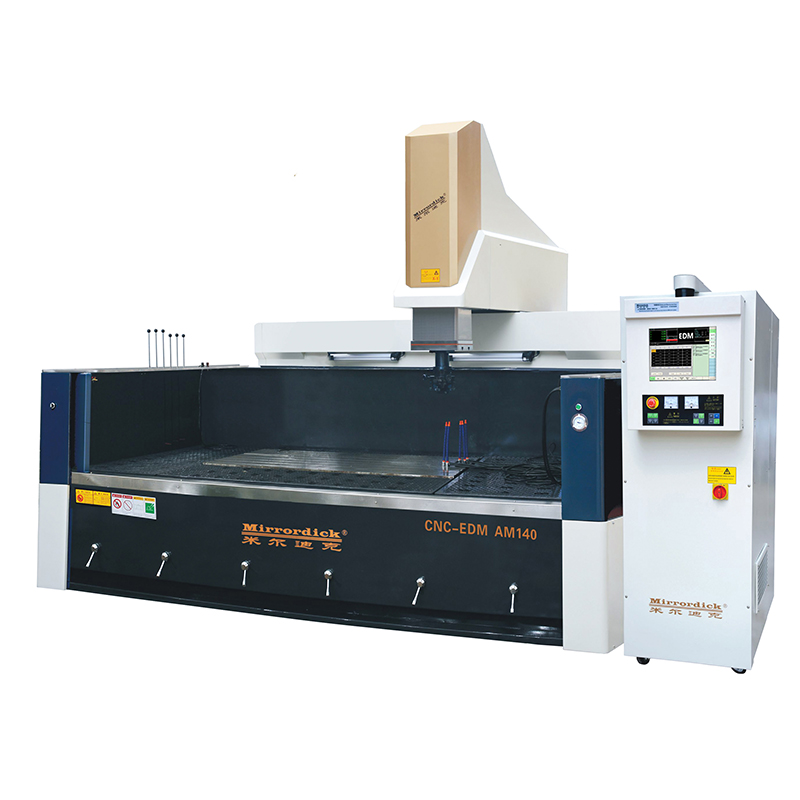

High precision double heads cow head EDM machine



• Windows control system (Chinese/English)

• Network transmission port

• PIKA ultra-precision miror discharge circuit

• 60 workpiece coordinate systems



Special option



• Spark oil constant temperature device

• Electric control box thermostat

• Stabilizer

• Quick Chuck

inquiry now

PARAMETER



Item AM140
Table size
(ength×width)		 1500×900（mm）
X, Y, Z axis travel 1400×700×500(mm)
Dimensions of machining fluid
tank (L×W×H)		 2250×1300×700(mm)
Machine weight 9000 kg
Machine tool floor area 4000×3650×3430(mm)
Maximum electrode weight 400kg
Maximum workpiece weight 5000kg
The Max,and Min,distance surface
to electrode plate		 690-1190mm
Total input power 13KVA(50A)
Input power 220V/380V(国内)
Maximum machining current 50A
Best surface roughness Ra 0.2µm
Minimum electrode loss 0.1%
Highest productivity 铜打钢500mm³/min/石墨打钢1030 mm³/min
定位精度（JIS标准） 7μm/任意300mm
重复定位精度（JIS标准） 4μm/任意300mm
Interpolation type Linear，circular，spiral
Compensation for each axis

Each axis respectively step error compensation，

clearance compensation
Maximum number of controlled axes Three axises linkage（standard configuration）
Resolution of each axis 0.4µm
Minimum drive unit 1µm
Input type 触摸屏，软盘，RS-232
Display type 15″液晶屏(TFT-LCD)
Manual control box 标准点动（多级切换）、辅助A0-A3
Power supply weight 800kg
Drive mode 日本松下交流伺服
Standard components
（明细见装箱单）		 铸铁工作台、镜面加工电路、自动调压电路（AVR）、
标准工具箱、加工液过滤纸芯、机床灯、自动灭火装置、
电极卡头、液位控制器、液温控制器、润滑脂、注油枪
Special configuration options 火花油、C轴、火花油恒温装置、稳压器、EROWA、3R，
公司各种工装卡具
