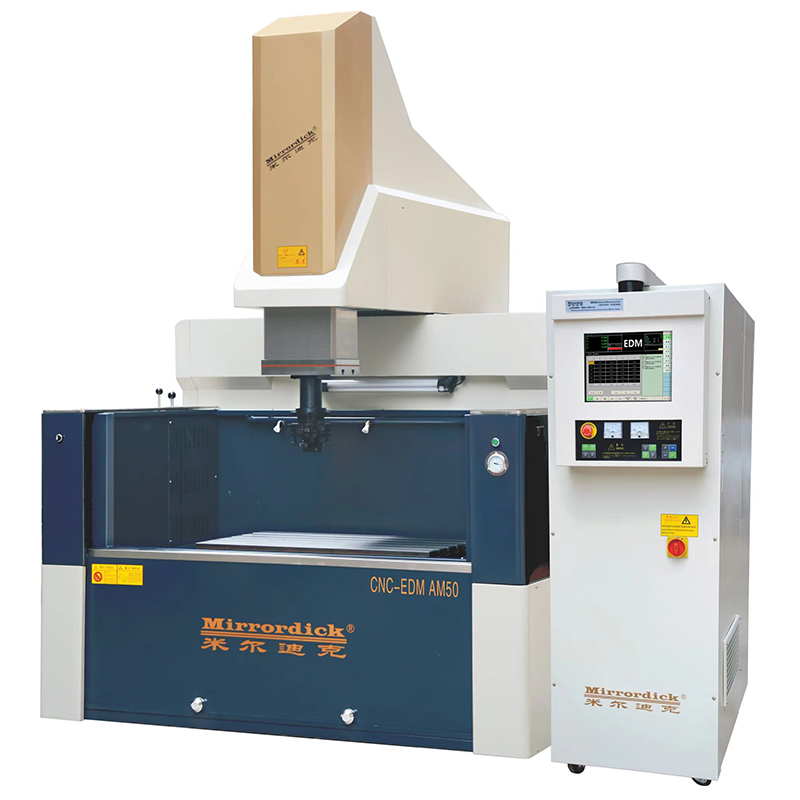

AM50 Precision Cow Head EDM Machine Series
AM50

High precision mirror machine

• Windows control system (Chinese/English)

• Network transmission port

• PIKA ultra-precision mirror discharge circuit

• 60 workpiece coordinate systems



Special option

• C axis

• 4-position ATC electrode library

• Spark oil constant temperature device

• Stabilizer

• Quick Chuck

• Mechanical automatic upper and lower doors

inquiry now

PARAMETER



Item AM50
Table size (length×width) 850×500（mm）
Internal dimenslon of machining
fluld tank (L×W×H)		 1370×950×520(mm)
X, Y, Z axis travel 500×400×350(mm)
Maximum electrode weight 100kg
Maximum workpiece size 1280×800×400
Maximum workpiece weight 2500kg
The maximum and minimum distance from the
work surface to the electrode plate		 390/690（mm）
Positioning accuracy (JIS standard) 6um/任意300mm
Repeat positioning accuracy (JIS standard) 3μm
Dimensions (length×width×height) 2500×2500×2700
Machine tool weight
(excluding CNC power supply)		 4000kg
Processing fluid filtration method Switching Cartridge Filter
Numerical control pulse power supply device A50
Maximum machining current 50
Total input power 9KVA
Input power 380V(China)
Best surface roughness  Ra0.2μm
Minimum electrode loss 0.1%
Highest productivity Copper hit steel 500mm³/min Graphite hit steel 1030mm³/min
Standard process Copper steel,graphite/steel ,fine graphite /steel , copper
tungsten aloyhard aloy, copper-tungsten aloy/steel,
red copper/red copper
Interpolation type Linear，circular，spiral
Compensation for each ads Each axis respectively step error compensation ,
clearance compensation
Maximum number of
controlled axes		 Three axises linkage (standard),four simultaneous axises (optional)
Resolution of each axis 0.4 μm
Minimum drive unit 1 μm
Input type Touch screen,U disk/Net work transmission
Display type 15”LCD screen(TFT-LCD)
Manual control box Standard point move (multistage switching)
Position command type Absolute，incremental dual purpose
Drive mode Fully digital AC servo
Standard accessories
(see packing ist for detalts)		 Machine sizing block,adjustable fixture,machine tool light,
falter,liguid level controller,insurance chip,tool box,
instruction manual,grease gun,etc.
