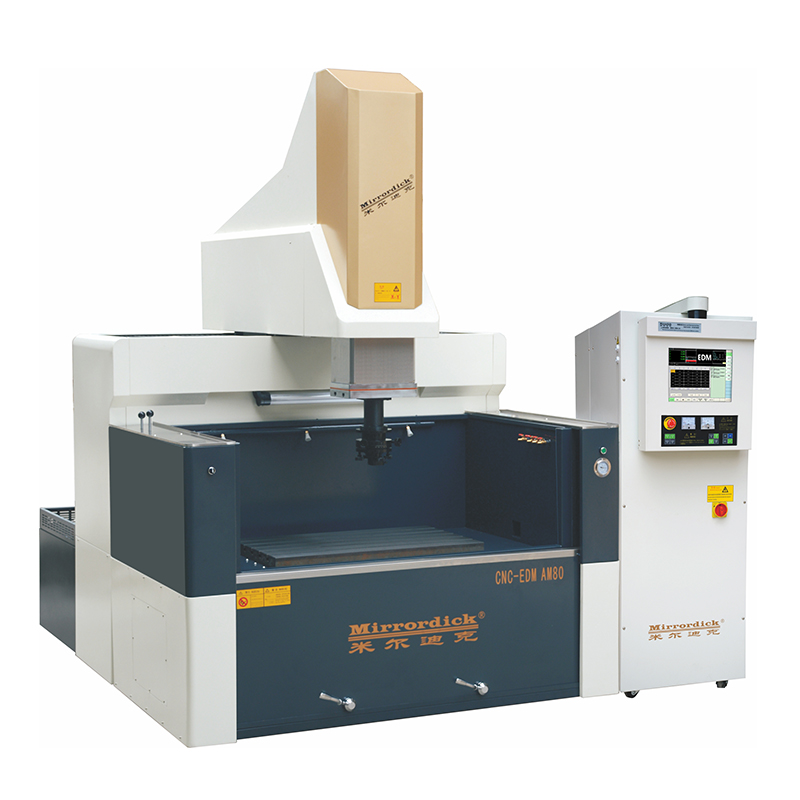

AM80 Precision Cow Head EDM Machine Series
AM80

High precision mirror machine

• Windows control system (Chinese/English)

• Network transmission port

• PIKA ultra-precision mirror discharge circuit

• 60 workpiece coordinate systems



Special option

• C axis

• 4-position ATC electrode library

• Spark oil constant temperature device

• Stabilizer

• Quick Chuck

• Mechanical automatic upper and lower doors

inquiry now

PARAMETER



Item AM80
Table size (length×width) 1050×600（mm）
Internal dimenslon of machining
fluld tank (L×W×H)		 1680×1100×600(mm)
X, Y, Z axis travel 800×500×400(mm)
Maximum electrode weight 150kg
Maximum workpiece size 1500×1000×550
Maximum workpiece weight 4000kg
The maximum and
minimum distance from
the work surface to the
electrode plate		 500/900（mm）
Positioning accuracy
(JIS standard)		 6um/任意300mm
Repeat positioning accuracy
(JIS standard)		 3μm
Dimensions
(length×width×height)		 2800×2700×2700
Machine tool weight
(excluding CNC power supply)		 5000kg
Processing fluid
filtration method		 Switching Cartridge Filter
Numerical control pulse
power supply device		 A50
Total input power 9KVA
Maximum machining current 50A
Input power 380V(国内-China)
Best surface roughness  Ra0.2μm
Minimum electrode loss 0.1%
Highest productivity Copper hit steel 500mm³/min Graphite hit steel
1030mm³/min
Standard process Copper steel,graphite/steel ,fine graphite /steel , copper
tungsten aloyhard aloy, copper-tungsten aloy/steel,
red copper/red copper
Interpolation type Linear，circular，spiral
Compensation for
eachads		 Each axis respectively step error compensation ,
clearance compensation
Maximum number of
controlled axes		 Three axises linkage (standard),four simultaneous axises
(optional)
Resolution of each axis 0.4 μm
Minimum drive unit 1 μm
Input type Touch screen，U disk/Net work transmission
Display type 15”LCD screen(TFT-LCD)
Manual control box Standard point move (multistage switching)
Position command type Absolute，incremental dual purpose
Drive mode Fully digital AC servo
Standard accessories
(see packing ist for detalts)		 Machine sizing block,adjustable fixture,machine tool light,
falter,liguid level controller,insurance chip,tool box,
instruction manual,grease gun,etc.
